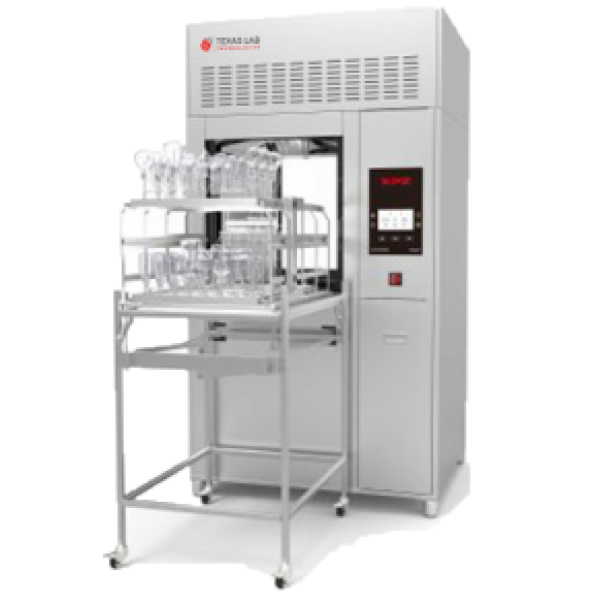

Laboratory Glassware Washers TGW-5000
The Laboratory Glassware Washer TGW-5000 is a high-capacity, automatic cleaning system designed for scientific environments needing reliable and efficient washing of laboratory glassware. Laboratory Glassware Washers TGW-5000 is a double glass sliding door large glassware washer for cleaning both small and large items and increase workflow and output as a user can load 5 independent racks especially for laboratory and medical applications. The TGW-5000 is decontaminating equipment that worked on moist heat to remove contamination and bacteria with a large wash cabinet and short program cycles. The key features include stainless steel interior, exterior, racks, and inserts withstand heavy use and provide protection against corrosion resistance materials and offer internal components peristaltic pumps and seals laboratory-grade for excellent durability of instruments.
| Capacity | ≥480 L |
| Circulating System | 1300L/min. |
| Basket Loading | 5 Levels |
| Materials | Internal Panel: 316L, External Panel: 304L |
| Programs | 36 Default, 100 user-defined |
| Heating Power | 9/18/27 KW |
| Total Power | 12/21/30 KW |
| Environment Temperature | 5 to 40°C |
| Dimension | 2340×1260×1050 mm |
| Electrical Requirement | 380V/50Hz |
| View | Description | Image |
|---|---|---|
| Main View | Glassware Washer TGW-5000 is a high-capacity, automatic cleaning system designed |
|
| Front View | Main operating panel, chamber for glassware, loading/unloading racks visible. |
|
| Back View | Typically contains plumbing, power connections, and service access panels |
|
| Side View | Shows unit depth and access to internal compartments or service doors |
|
- Chamber volume of around 202 liters supporting multiple layers (1-3) of glassware at once.
- Adjustable circulation pump flow rate up to 600 L/min for powerful cleaning.
- Hot air drying for rapid drying of glassware post-wash.
- Standard feature for easy sorting and handling of glassware baskets.
- Suitable for 144 seats of 25ml volumetric flasks, 84 seats of 100ml volumetric flasks, and 476 seats of sample or pipette vials.
- Available in configurations such as 4 kW or 9 kW heating power.
- Touchscreen control panel with programmable wash programs (up to 200 user-set and 12 factory presets).
- USB/Ethernet enabled for exporting cycle data and reports.
- Secure, easy freestanding installation suited for laboratory environments.
- Automated dosing of detergents and rinse aids for consistent cleaning quality.
Used for cleaning and sterilizing glassware such as beakers, flasks, test tubes, and petri dishes, ensuring a contamination-free environment and improving the accuracy and reliability of experiments. Provides hygienic and thorough cleaning of medical laboratory glassware to maintain sterile conditions crucial for diagnostic testing. Essential for cleaning pharmaceutical packaging containers and glassware to ensure drug safety, quality, and regulatory compliance. Removes residual chemicals and contaminants from glassware to prevent cross-contamination and interference in subsequent experiments.
